Dinosaural Cogmeister - 3-in-1 Vintage Overdrive and Boost Pedal

Tax Free - Fast Free U.S. Shipping - Free Returns...

We are an Authorized U.S. Dinosaural pedals dealer, and $399 is your absolute final/total here year-round, for this brand new Dinosaural Cogmeister pedal (with box, etc.). A 3-in-1 overdrive, fuzz, boost, handmade in the UK!

The Dinosaural Cogmeister pedal started as a crowdfunding project, with long time UK guitar pedal guru Dan Coggins of Coggins Audio, and former co-founder of Lovetone effect pedals. Demand quickly grew, and with the help of ThorpyFX, Cogmeister is now produced in commercial production facilities.

Cogmeister has received praise from professional and enthusiast guitarists for its old-school sound, described as 'sublime' by That Pedal Show. Since its introduction, it has gained popularity among musicians like Chris Turpin (Ida Mae, Kill It Kid) and Paul Stacey (Oasis, Noel Gallagher's High Flying Birds, the Black Crowes), who praise its versatility and ability to evoke classic rock tones.


Go to 27 minutes into this episode of That Pedal Show, for the Dinosaural Cogmeister demo.

Dinosaural  Cogmeister is a single guitar booster/overdrive/distortion/fuzz pedal, containing a trio of compatible sections arranged in fixed series pattern. These comprise the Push, Drive, and Solo sections, each featuring its own true/hard-wire bypass stompswitch and corresponding LED.

The Cogmeister pedal is a trio of compatible booster effects, which are arranged in a fixed series chain, with true/hard-wire bypass mechanical foot switches. The central red LED is designed to dim noticeably, relative to the other two LEDs, whenever the battery gets too low and/or supply voltage drops.

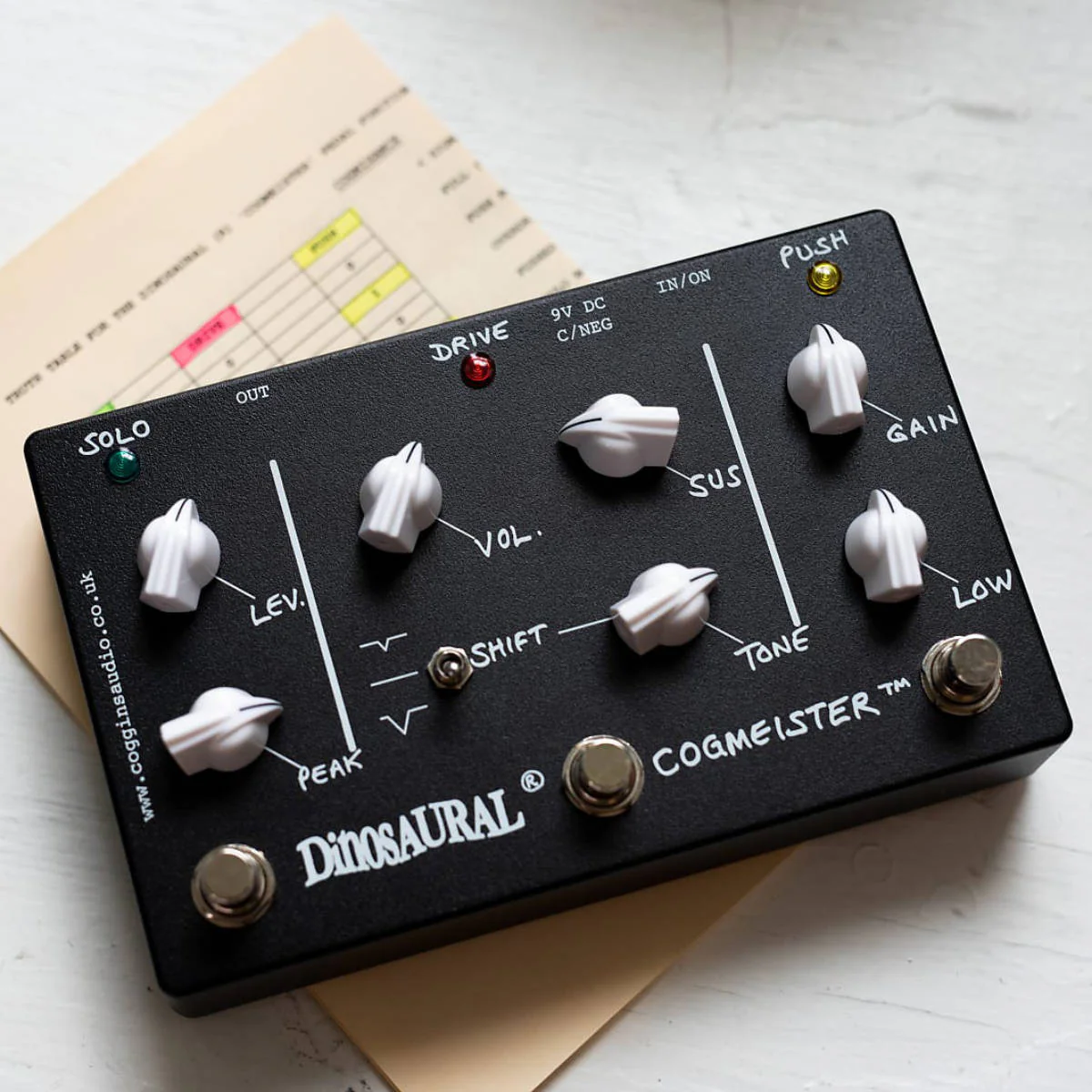

Dinosaural Cogmeister controls are configured as follows: all the gain and/or level controls are found along the top row, while the timbre and/or tone controls are situated along the bottom row. The 3 effects are marked by the two vertical white lines, and each effect has its own bypass switch.

The ‘Solo’ section of Cogmeister is at the output end of the signal chain, and this may be used to give a moderate, clean ‘flat’ signal boost, or a progressively higher gain, but narrower bandwidth midrange boost, with increasing distortion as the PEAK control is advanced clockwise. This can be for lifting solos level, and/or generally increasing intensity and focus. The LEV control affects the output volume of the solo section, and the whole pedal when the green LED is on. This is worth knowing when things get loud!



Dinosaural Cogmeister's ‘Drive’ section in the center is an overdrive/booster, with a modified EQ curve and greater tonal options, plus an extra gain stage for more harmonics, especially when the VOL control is turned up high. The 3-position SHIFT switch modifies the low frequency range of the adjacent TONE (low-high frequency balance) control, giving 3 distinct resulting midrange contours to suit a variety of amp and loudspeaker configurations, as well as evoking various classic amp timbres in and of itself. The SUS control determines the input gain range of this section and increases the harmonics and speeds up the rise time of the distortion when turned clockwise. A relatively clean ‘warm’ boost may be obtained with SUS turned down.

The ‘Push’ section is a late 1960’s style, single-transistor treble (or more accurately, upper- midrange) booster, with an adjustable GAIN boost control, and adjustable bandwidth on the LOW control, which when set anticlockwise only boosts the upper partials (harmonics), and when turned clockwise introduces back the fundamentals (low frequencies), which also results in a ‘feral’, crunchy distortion with the GAIN turned up. This can drive subsequent stages into a ‘pushed’ overdrive distortion/fuzz effect or drive an amplifier input harder for more intense energy and sustain: especially useful for when recording ‘heavy’ guitar.

Dinosaural Cogmeister has an enormous gain range of the combined three sections, which essentially constitute an early-70’s style fuzz-box, with far greater versatility. The all-discrete, Class-A, silicon transistor circuitry gives an authentic, vintage sound, and each section has its own unique distortion characteristics.

Dinosaural Cogmeister pedal reviews from our customers at Reverb:

DINOSAURAL COGMEISTER PEDAL SPECS:

• 7.25' L x 4.5' W x 1.5' H
• 1.55 lb
• Current consumption at 9 volts DC is between 7 and 16mA
• True Bypass footswitches



MORE INFO:

Power Supply (sold separately):
This pedal can use a 9-volt battery, or the standard 2.1mm plug, 9 Volt DC, Center-Negative power supply, (like most all guitar pedals use), up to a maximum of 12 volt power supply. A high quality, stand alone power supply is recommended for best sound and lowest noise at high gains. Any power supply higher than 12 Volt DC can damage the pedal.

Warranty:
Comes with Coggins Audio's 2-year warranty, under normal use, with proper power supply.

Shipping:
Ships fast! Usually same day, with Free UPS shipping in U.S. with tracking (1 biz day processing, 1-3 biz days transit time usually). 1 and 2-Day guaranteed shipping are also available.

Our added value, when purchased here at coolguitarshop.us:

• Tax Free & Duty Free!
• Lowest Price Available, Year-Round Here: $399 is your absolute final/total here, with Shopify Secure Checkout.
• Fast Free Shipping in U.S.
• No Risk: Try it on your own rig for 30 days. Don't love it? Return it for a full refund... no hassles, no costs. (We'll send you a prepaid return label link.)
• Rock-solid customer service, 365 days a year.

Get its much praised, vintage, old school sound, plus an incredible 3-in-1 pedal value, with the Dinosaural Cogmeister overdrive and boost pedal, handmade in the UK!
